Aluminum 3003 Aluminum Alloy 3 Series Aluminum Alloy H18 Silver
Product Description:
We supply aluminum alloy tubes for heat exchangers, which are made of 3 series aluminum alloy, 1 series aluminum alloy, 6 series aluminum alloy and 5 series aluminum alloy.
These products are mainly adopted by a wide range of air conditioning, refrigerators, heat exchange and air conditioning equipment manufacturers. We can offer a variety of shapes (ruler-shaped or coil-shaped) and specifications of variety selection. Each product has been produced by high-end manufacturing, using advanced technology and professional heat treatment technology for treatment, implementation of strict production process control, high precision and low leakage rate, good quality. Its extremely high induction density allows the extruded tube to fully fit the channel requirements. In addition, in line with the principle of customer-oriented, we will be in accordance with the actual needs of customers, to provide the corresponding specifications and performance characteristics of customized services. The product comes from high-quality remelting rod, strictly control the weight source, using large-tonnage extruder, using hot extrusion cold drawing manufacturing method, through multiple strict product quality testing procedures to ensure product quality. I believe we can provide you with the best quality products.
Features:
This aluminum alloy is widely used in many anti-rust materials, because its strength is only slightly higher than industrial pure aluminum and can not be enhanced by heat treatment characteristics, so mainly cold processing to improve mechanical performance. It is highly plastic in the annealed state; it remains good plasticity in the just-undercooled processing stage; and it decreases in plasticity after over-cooled processing. It has excellent corrosion resistance and welding ability, but in the mechanical processing performance is less.
Our company is strong and consists of an excellent technical team. This team has accumulated a wealth of experience in industrialisation. They have a close working relationship with a number of well-known universities and research institutes such as Xi'an Jiaotong University, Nankai University University and Changzhou University, to jointly build a cutting-edge Innovation R & D Laboratory.
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
The specifications in the form can be customized according to customer's requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:

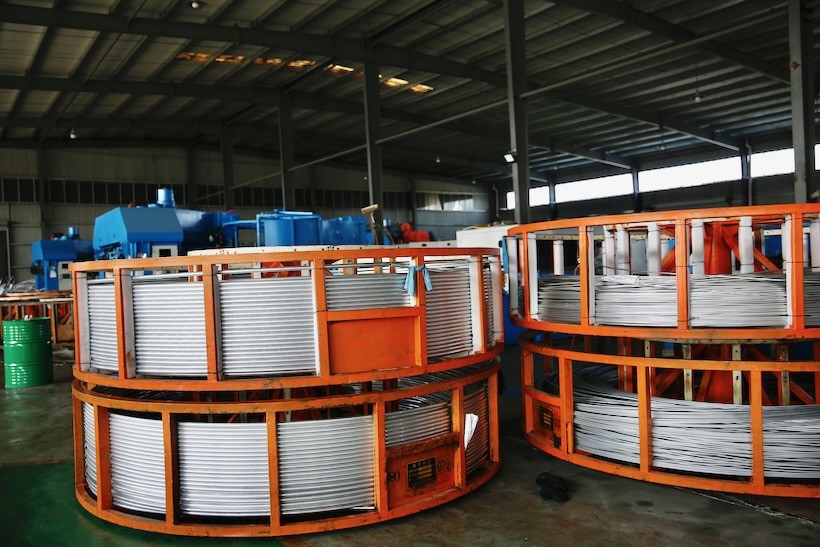

Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging
Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging
Support and Services:
We support and provide technical services for the use of aluminum pipes and assist customers to solve the production problems arising during the actual use process. Including the performance detection of aluminum pipe, technical analysis, the use of the back channel, aluminum pipe welding, aluminum pipe pipe, aluminum pipe bending, finished product leakage detection, etc., at the same time in the use of related problems, we will also assist customers to solve problems in the first time. And make corresponding adjustments according to the actual situation.
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
